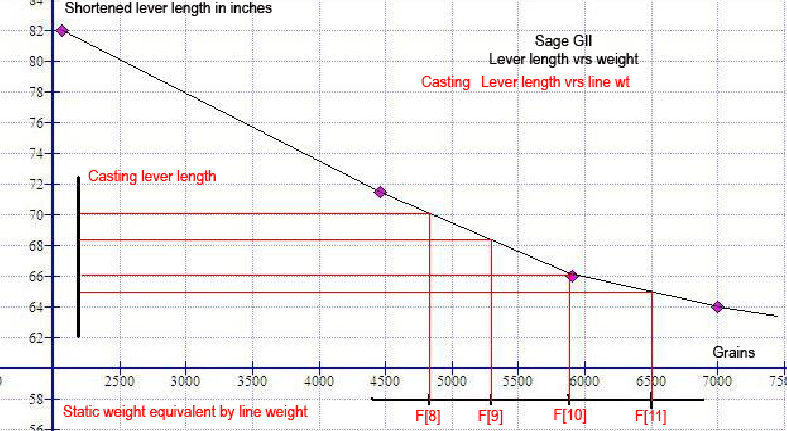

A possibly more visual representation of the predictive model is below. The graph is the actual plotted shortened lever length by static weight.
Assume for the moment that one can correlate the static weight with the Dynamic Force which causes equal flexion, static and dynamic. Superimposed is the Force line of which I have one rough point...the others are conceptualized and the scale of the Force line might be more squashed or strung out. Taken in it's entirety this would represent a predicted flexion for this rod for every line weight or load.
The three F model, or one F and a slope figure (d) would be a quick and dirty access to the relevent working section of this full graph. The rod flexion (shortening) for a standardized Force, load specific, for a chosen line (load) is predicted.
